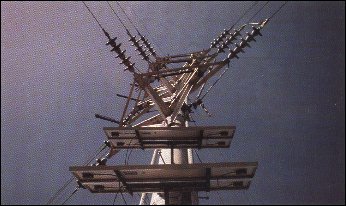

Application: Solar Powered Motor-operated Disconnect Switch
Location: Marietta, N.W. Atlanta ________
In order to allow remote sectionalizing of important loads for faster service, two 115 kV switches were motorized using 24 V motor
operators powered by batteries. The 24 V sealed batteries are charged using a 300 W solar array. The equipment is controlled using a radio linked remote terminal unit.
6 each, M55 solar panel 24 V, 200 amp hour battery bank 2 each, 24 V motor operators 1 each, remote terminal unit
1 each, radio link
Distribution lines are not always available so the use of AC transformers to motorize remote transmission line switches is in many cases
not practical. Using solar power provides quick and convenient access to sectionalizing transmission lines without sending service personnel into the field.
